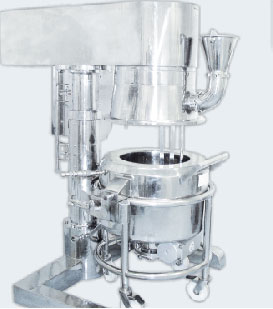

Planetary Mixer

Planetary Mixer is ideal for mixing of wet / dry materials. It has a homogeneous mixing action. The planetary motion of the beater enables faster and better mixing of material at a considerably lesser time. Slow speed is used for dry mixing with less dust generation and faster speed for kneading operation during wet granulation portable mixing bowl with top mounted agitator has a dual advantage of material transfer and no risk of gland packing contamination.
Planetary Mixer
Salient Features
  • All contact parts of the Bowl and Beater are made of SS 316.
  • Scrapping blades can also be provided.
  • Mixing bowl can be jacketed for Electric / Steam / Thermic.
  • Manual lifting arrangement for agitators up to 50 Lts, and Hydraulic Motorized lifting arrangements for
  • capacities of 100 Lts and above.
  • The Mixing bowl is provided with Castor wheels and Locking arrangement for Easy handling and VJHSE
  • option also provided.
  • Effective beater design speeding up the process of starch preparation.
  • Surface finish of 0.3 Ra making the discharge of the binder paste easy.
  • Flush Bottom Ball Valve with a clear 4 opening making the flow ability easy.
  • Quick Release coupling with built in NRV installed on the machine.
  • CE Certified.

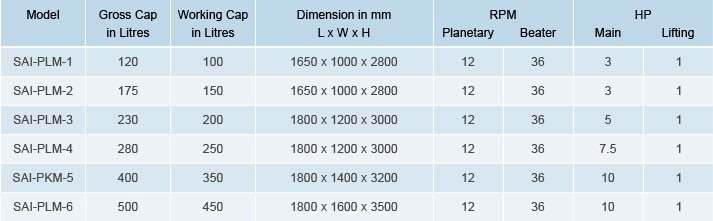

Technical Specification
