Double Cone Blender

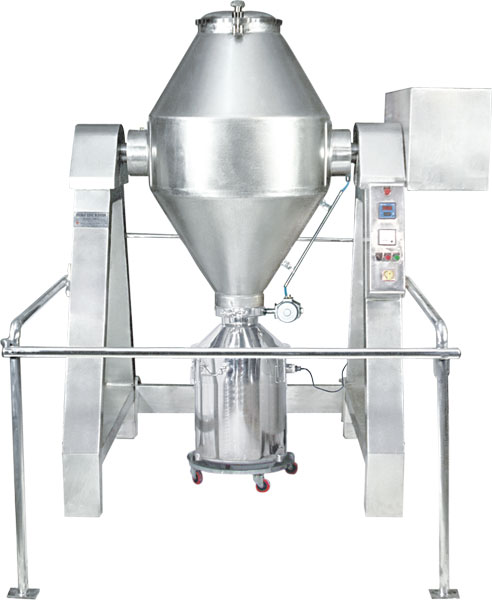

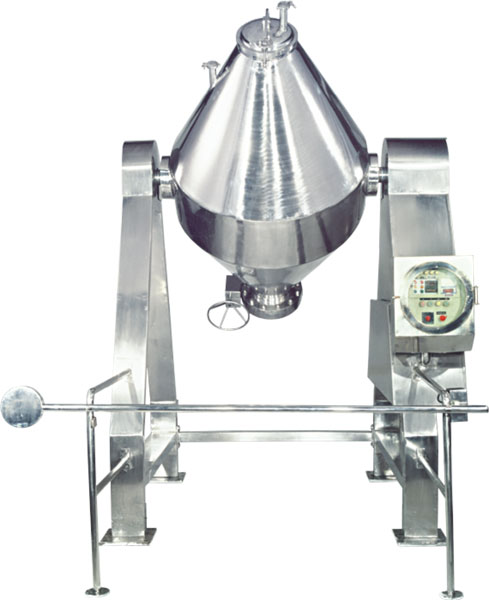

Rapid Mixer Granulator Tapasya's Double Cone Blender is an efficient and versatile equipment for mixing of powder such as pharmaceutical excipients, various chemicals, food products homogeneously. With an effective volume for optimum homogeneity between 35-70% of gross volume, and a SLANT double cone design that eliminates dead spots, this Double cone blender is ideal across various industries including pharmaceutical, food, chemical, cosmetics, etc.

Download PDF

Features

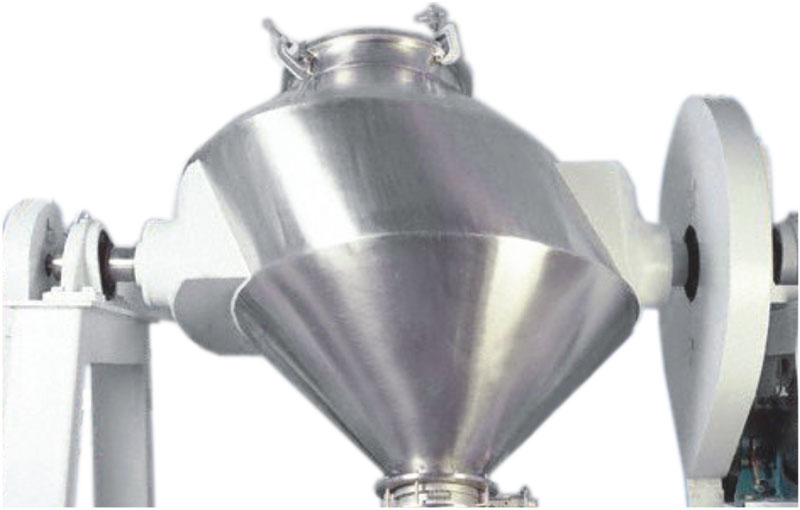

Conical shape and elongated plane at both ends enables uniform mixing and easy discharge
The cone is statically balanced which protects the gear box and motor from any excessive load

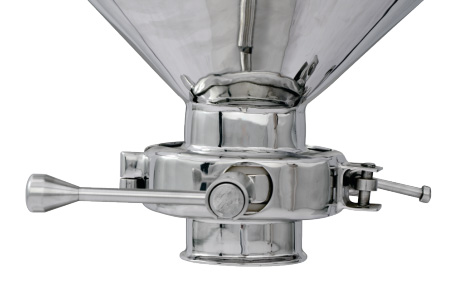

Powder is loaded into the cone through a wide opening and discharged through a butterfly or a Slide valve
Depending upon the characteristic of the product, paddle type baffles can be provided on the shaft for better mixing, uniform blending and de-agglomeration

Contact parts are made of SS 304 or SS 316L
Flame proof electricals can be provided
'Slant' design
Variable speed option available 70%~
Dust free bin charging system

Benefits For You

Homogenised blending of solid components
Advanced design with custom made additional features for varying speed, safety (flame-proof) and varying capacities
