Ribbon Blender

Rapid Mixer GranulatorTapasya's Ribbon Blender is a light duty, compact blender is designed to achieve convection mechanism of blending powder components which are pre-processed like dried granules, pre-sieved powders etc. It is a LOW SHEAR mixer and ideal for SOLID / SOLID Mixing. Solid / Liquid mixing can also be achieved when high shearing force is not desired.

Features
  • Available in two shapes - U & W
  • U-for Low to Medium volume Capacity (single shaft)
  • W-for Large to Mega volume Capacity (double shaft)
  • Batch size based on 65% of Blender volume
  • All contact parts in SS 316L
  • Designed to avoid Cross contamination with Monoblock Design
  • Bearing mounted on lanterns out of mixing zone

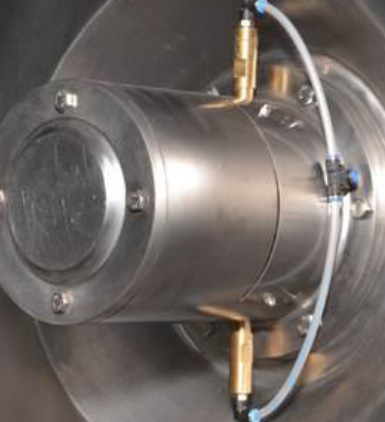

  • Air purge on the side entry seals
  • Meets all cGMP/cGEP standards
  • Continuous Ribbon design for complete discharge
  • Variable frequency drive for fine tuning the Shear energy
  • Belt driven power transmission
  • Reduced material handling with Top mounted charging port and Side discharge arrangement
  • Paddle style agitator instead of Ribbon for Blending fragile materials
  • Lance type injectors for liquid spraying
Benefits For You
  • Homogenised blending of solid components
  • Specially designed to avoid cross contamination
  • Low maintenance
  • Low noise blender
  • Occupies less space
  • Minimal material handling
Double Cone Blender used in Industries
  • Pharmaceutical
  • Nutraceutical
  • Food
  • Chemical
  • Cosmetics

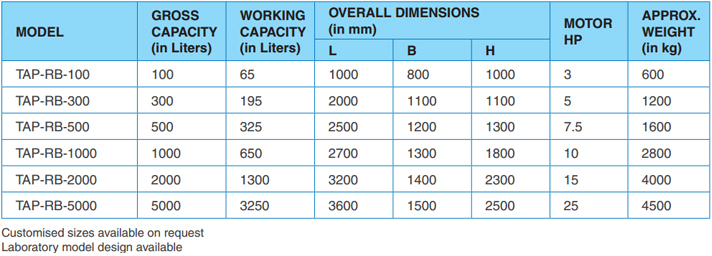

Technical Specifications

Gallery

Oscillating Granulator High Shear Mixer Granulator Planetary Mixer
