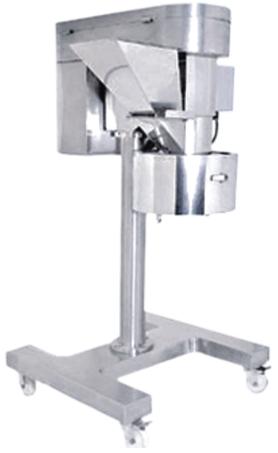

Multi Mill

A cornerstone in particle size reduction, blending, and granulation across industries. As a leading Multi Mill Manufacturer and Supplier, we pride ourselves on delivering high-quality Multi Mill Machines engineered for precision and efficiency. Our Industrial Multi Mill Equipment, including Pharmaceutical Multi Mill variants, is designed to meet the rigorous demands of modern manufacturing. Utilizing advanced Multi Milling Technology, our equipment offers customizable solutions tailored to your specific processing needs.

Our commitment to providing High-Quality Multi Mill solutions ensures consistent performance and reliable results in particle size reduction applications. Whether you're in pharmaceuticals, chemicals, food processing, or other sectors requiring industrial Multi Mill equipment, our products are designed to meet your needs.

The Multi Mill's primary function lies in its ability to crush, grind, and blend a wide range of materials to achieve the desired particle size and uniformity. With customizable settings and robust construction, our Multi Mill is the go-to equipment for enhancing product quality, consistency, and processing efficiency.

Experience the versatility and reliability of our Multi Mill for your particle size reduction needs. Explore our range of Multi Mill options, including Custom Multi Mill Solutions tailored to your unique requirements. Trust in our expertise and technology to elevate your processing capabilities with the power of the Multi Mill.

Features
  • Efficient Dust contained Multi mill
  • Machine Portable on Castor wheels
  • High output with Process uniformity
  • All contact parts are in SS 316L
  • Direction of the Blade rotation can be changed using a Reversing switch for Hammer or Knife operation for various product type
  • Multiple combinations of Screens / Speeds / Number of Blades available for every Product type
  • Higher Screen opening area for Higher Throughput
  • Easy Dismantling and Cleaning of all Components reducing Production Downtime and increasing Productivity
  • Additional perforated screen at the bottom of pulverizing chamber ensuring Higher Fineness and Controlled Size of Granules
  • Built-in Variable Frequency Drive for multiple speeds
Specification

1. Dimensions:

  • Height: 1500 mm
  • Width: 800 mm
  • Depth: 1000 mm
  • Weight: 500 kg

2. Capacity:

  • Maximum Throughput: 50-200 kg/h (depending on material and particle size)
  • Hopper Capacity: 20 liters

3. Power Requirements:

  • Voltage: 220V/380V (optional)
  • Frequency: 50Hz/60Hz
  • Power Consumption: 7.5 kW

4. Materials of Construction:

Contact Parts:
  • Material: Stainless Steel 316L
  • Finish: Mirror Polish
Non-Contact Parts:
  • Material: Mild Steel
  • Finish: Powder-Coated

5. Operating Environment:

  • Temperature Range: 10°C to 40°C
  • Humidity Range: Up to 85% RH (non-condensing)

6. Control System:

Control Panel:
  • Type: PLC with HMI (Human Machine Interface)
  • Interface: Touchscreen
Safety Features:
  • Emergency Stop Button
  • Overload Protection

7. Motor:

  • Type: AC Motor
  • Power: 10 HP

8. Safety Compliance:

  • Regulatory Compliance:
  • FDA, cGMP, CE, ISO 9001:2015

9. Additional Features:

  • Tool-Free Disassembly for Cleaning and Maintenance
  • Adjustable Speed Control (Variable Frequency Drive)
  • Dust Collection System Integration (Optional)
  • Noise Reduction Technology

10. Optional Accessories:

  • Dust Collector
  • Product Feeding System
  • Product Discharge System

11. Warranty:

  • Standard Warranty: 12 months from the date of installation

These specifications are subject to customization based on specific requirements and application needs. For more detailed information or customization options, please contact Tapasya Prochem directly.

Applications

1. Pharmaceutical Industry:

  • In the pharmaceutical sector, the Pharmaceutical Multi Mill plays a pivotal role in the manufacturing process.
  • It is extensively used for size reduction, granulation, and mixing of pharmaceutical ingredients to produce tablets, capsules, and other dosage forms.
  • The Multi Mill's precise and uniform particle size reduction capabilities ensure consistent product quality and efficacy.
  • Pharmaceutical manufacturers rely on the Multi Mill for its compliance with regulatory standards and its ability to handle a wide range of pharmaceutical formulations.

2. Chemical Industry:

  • In the chemical industry, the Multi Mill Machine finds applications in grinding, blending, and pulverizing various chemical compounds.
  • It is utilized for processing chemicals used in industries such as specialty chemicals, agrochemicals, and dyes.
  • The Multi Mill's robust construction and customizable features make it suitable for handling different types of chemical materials efficiently.

3. Food and Beverage Industry:

  • Food manufacturers utilize the Multi Mill for size reduction and blending of food ingredients such as spices, herbs, grains, and powders.
  • It is employed in the production of food products like seasonings, spice blends, and powdered beverages.
  • The Multi Mill ensures uniform particle size distribution, enhancing the texture, flavor, and quality of food products.

4. Cosmetics Industry:

  • In the cosmetics industry, the Multi Mill is used for milling and refining cosmetic ingredients such as pigments, powders, and emollients.
  • It helps in achieving desired particle sizes and textures for cosmetics formulations like creams, lotions, and powders.
  • Cosmetic manufacturers rely on the Multi Mill's versatility and precision for consistent product quality and performance.

5. Customized Solutions:

  • Beyond standard applications, the Multi Mill offers Custom Solutions tailored to specific processing requirements.
  • Manufacturers and suppliers collaborate with customers to develop customized Multi Mill Solutions optimized for unique applications and production goals.
  • Whether it's specialized materials, unique processing conditions, or specific particle size requirements, the Multi Mill can be customized to deliver tailored solutions.

In conclusion, the Multi Mill's versatility, precision, and customizable nature make it indispensable across a wide range of industries for particle size reduction, mixing, and blending applications. As a trusted Multi Mill Manufacturer and Supplier, we provide High-Quality solutions that meet the diverse needs of our customers.

Why Choose Our Multi Mill

Choosing our Multi Mill offers several compelling advantages that set it apart from other options in the market. Here's why you should choose our product, incorporating the provided keywords:

1. Industry-Leading Expertise:

  • As a renowned Multi Mill Manufacturer, we bring decades of experience and expertise to the table.
  • Our in-depth knowledge of Multi Milling Technology ensures that our equipment is designed and built to the highest standards of quality and performance.

2. Customized Solutions:

  • We understand that every processing requirement is unique. That's why we offer Custom Multi Mill Solutions tailored to your specific needs.
  • Whether you require specialized materials of construction, unique features, or specific capacity requirements, we can customize our equipment to meet your exact specifications.

3. Pharmaceutical-Grade Quality:

  • Our Pharmaceutical Multi Mill is engineered to meet the strict requirements of the pharmaceutical industry.
  • With high-quality construction and precision engineering, our equipment ensures compliance with FDA, cGMP, and other regulatory standards.

4. Versatility and Flexibility:

  • Our multi-mill machine is versatile, capable of handling a wide range of materials and particle sizes.
  • From pharmaceuticals to chemicals, food, cosmetics, and beyond, our equipment adapts seamlessly to diverse processing applications.

5. Reliability and Durability:

  • Built with robust materials and components, our Industrial Multi Mill Equipment is designed for long-term reliability and durability.
  • Our equipment undergoes rigorous testing and quality control measures to ensure consistent performance in demanding production environments.

6. Precision Particle Size Reduction:

  • The Multi Mill offers precise control over particle size distribution, enabling uniformity and consistency in the final product.
  • Whether you require coarse grinding or fine milling, our equipment delivers accurate results with every use.

7. Comprehensive Support:

  • From initial consultation to installation, training, and after-sales support, we provide comprehensive assistance every step of the way.
  • Our dedicated team is committed to ensuring your satisfaction and success with our Multi Mill.

8. Trusted Supplier Partnership:

  • As your preferred Multi Mill Supplier, we prioritize building lasting partnerships based on trust, integrity, and mutual success.
  • Count on us to deliver High-Quality multi-mill solutions that exceed your expectations and elevate your processing capabilities.

Choose our Under Driven Cone Mill for superior quality, performance, and support. Experience the difference with our trusted solutions tailored to your unique requirements.
