Oscillating Granulator

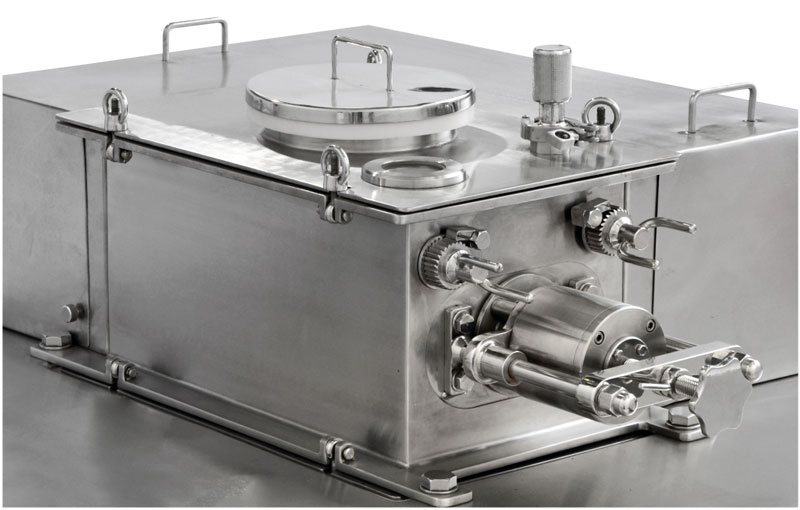

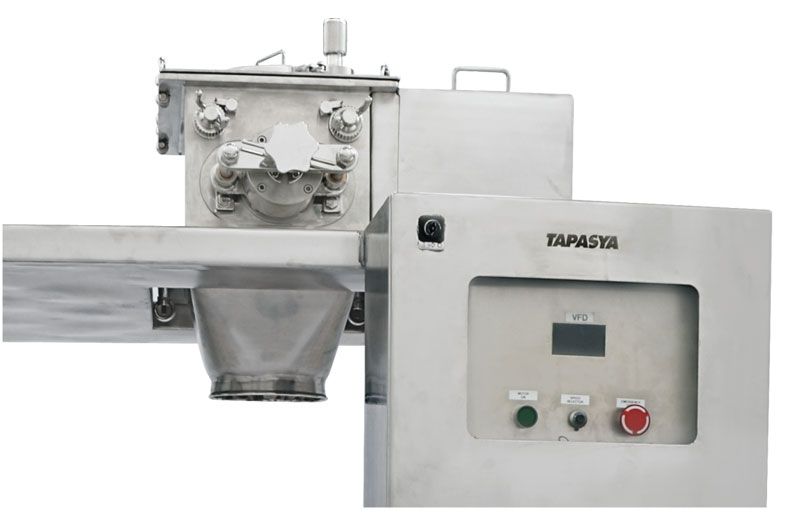

Rapid Mixer GranulatorTapasya's Oscillating Granulator is ideal for meeting the multiple needs of Dry Granulation, Wet Granulation, Screening, Crushing, Breaking lumps, etc for the Pharmaceutical and Nutraceutical industry. The oscillating motion of the rotor with uniform speed and force applied to the material, improves the granulating process and enhances the compressibility of the product.

Features

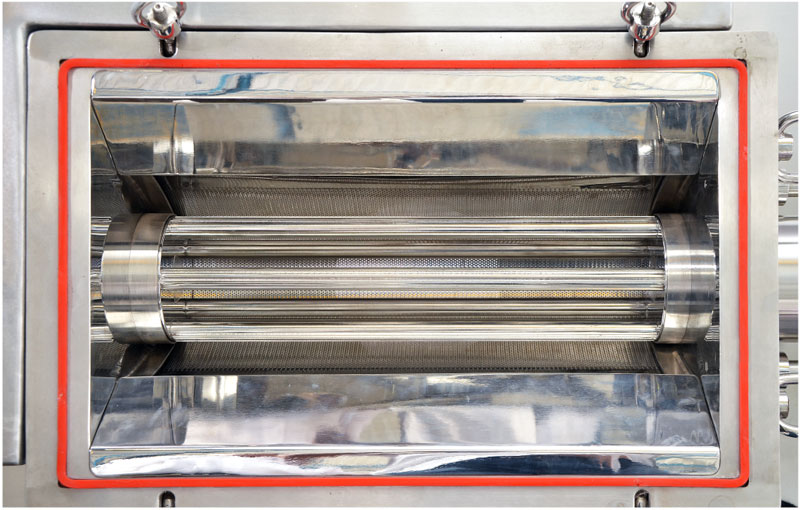

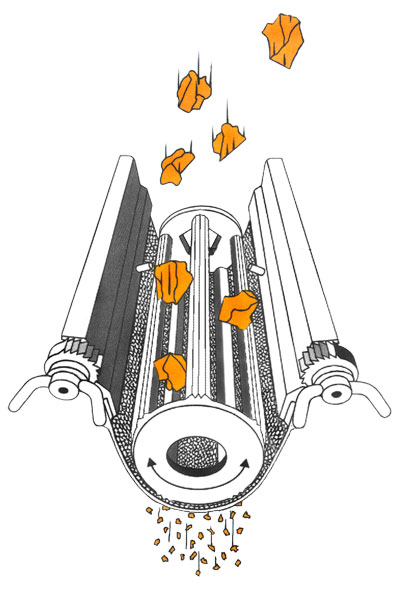

  • Oscillating rotor with back and forth motion for even distribution of material
  • SS construction (AISI 316 / 316L)
  • Inside polished Ra = 0.8 micron, outside ground (grain 220)
  • Maintenance free design, GMP execution

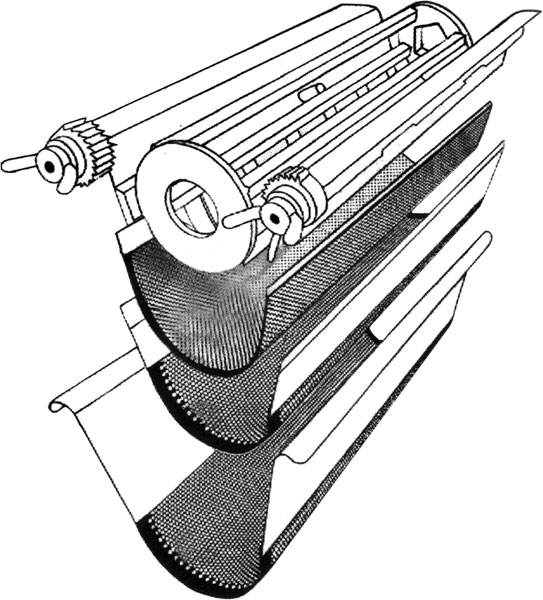

  • Multiple varieties of sieves, fine sieves & perforated plates available to suit all your needs
  • Range 0.5 mm to 10 mm
  • Robust, Simple & Compact Design
  • Easy Installation in Production Line
  • Low noise level as per international norms
  • Easy for Cleaning
Benefits For You
  • High output with uniform sized granules and less fines
  • Easy maintenance
Oscillating Granulator used in Industries
  • Pharmaceutical
  • Nutraceutical

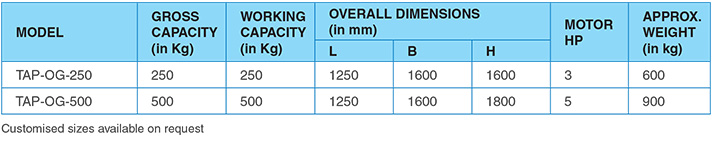

Technical Specifications
